Tag machine
Tag machine
Applicable scope

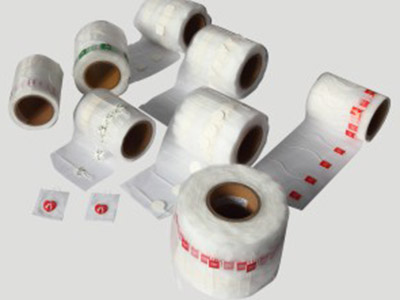

Nylon PLA mesh non - woven PET can be ultrasonic sealing materials
Performance characteristics
1.With ultrasonic bonding,the size of 20 * 20mm label paper fixed at 120,140 160 180 four wide can be ultrasonic sealing material
2.Can accurately control the adhesion fastness and the effect,the trigger type ultrasonic stability is high,the failure rate is extremely low
3.Multi-point light control to ensure that the mesh without spaces,such as paste paste failed
4.Using Siemens PLC control,with Siemens touch screen operation,the whole parameter touch screen settings (line length,bag length,label length)
5.High-precision feeder to ensure a high degree of tight membrane balance
6.Full high-precision servo control,accurate to 0.1mm
7.long and short line switch
Main technical parameter
| model | SF-60TAG |
| Production speed | 50-60標(biāo)/分 |
| Mesh type | 尼龍、PET、PLA網(wǎng)布、無紡布 |
| Mesh width | 120、140、160、180（mm） |
| Label size | 20*20（mm） |
| Tag line length | 125mm、150mm、170mm |
| Tag roll requirements | 寬幅20mm，膜需符合要求 |
| Backing roll requirements | 寬幅30mm，襯紙需符合要求 |
| The core of the roll core | Φ76mm |
| The outer diameter ofthecloth | ≤Φ400mm |
| Adhesive form | 超聲波 |
| Ultrasonic quantity | 4套 |
| Finished product pass rate | ≥99.8% |
| Air pressure | ≥0.6Mpa(由定做方保證供氣) |
| The motor power of the machine | AC220V/50HZ |
| Operator | 1人 |
| Equipment shape | 主機(jī)： L 1200xW 1100xH 1800mm 收料機(jī)： L 700xW 600xH 1300mm |
| Equipment weight | 約500kg |
